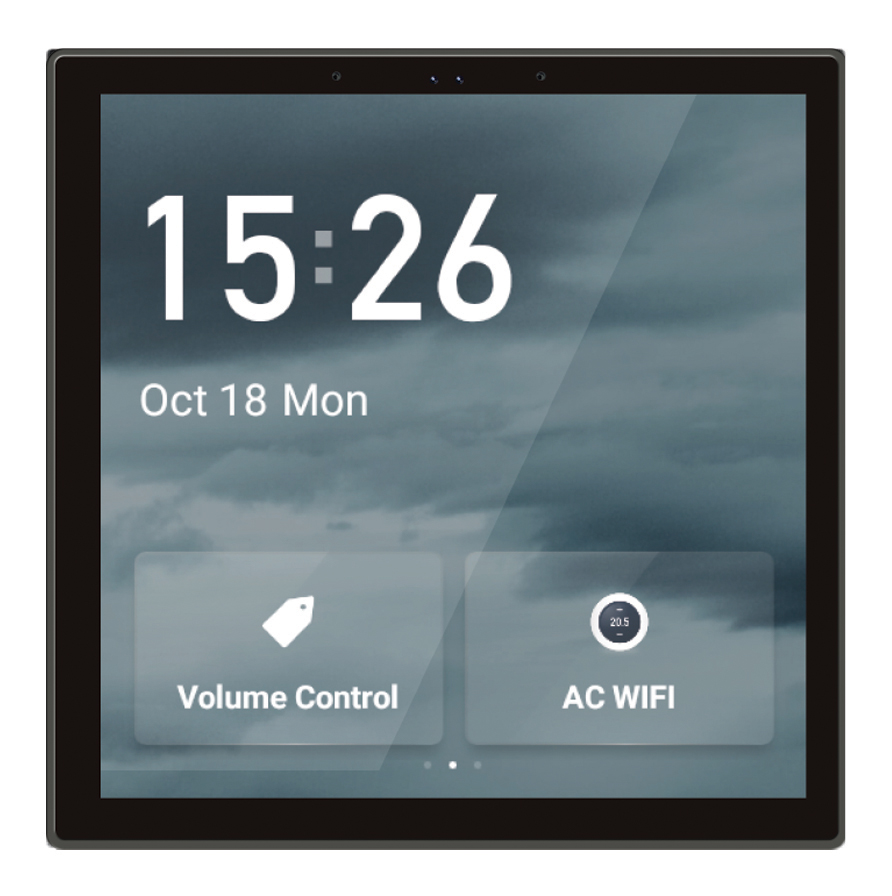

Zigbee 4″ Smart Touch Panel
- Integrated with multiple functions, it can be used as ZigBee gateway and variety of control panels such as light control panel, switch panel, visual doorbell panel, etc, to achieve a user-friendly interactive experience.
- Connect multiple scenes, which syncs with mobile phone, replaces the role of scene switch, combined with voice control, to be your intimate home keeper.
- With the 4-inch LCD screen, it dynamically presents the date and time, to intimately broadcast the daily weather on home page as your life assistant. You can also add common scenarios and devices to the home page for one-click operation.
- Equipped with two built-in relays, this system enables seamless control of two switches, empowering you to effortlessly manage the lighting for your room.
• Zigbee 4″ Smart Touch Panel
• iAppliance App enabled
• Intuitive Touch Controls
• Multi-device Compatibility
• Customizable Scenes
• Real-time Status Monitoring
• Notifications and Alerts
• Neutral required
CPU: PX30 Quad Core Cortex A35
RAM: 2GB, ROM: 8GB
Screen: 4 inch 480*480 (Multi-touch)
Ethernet: 10M/ 100M Adaptive
RS485: Half-Duplex 3.81mm terminals
WiFi: 802.11b/g/n 150Mbps (2.4Ghz)
Zigbee: 802.15.4 PHY/MAC Zigbee
Relays: Built in 2 relay which can control 2 switches for the room lights
Music Play: Built in 1W Mono speaker
Light sensor: Automatically adjust the screen brightness according to environment
Product dimension: 86x86x10mm (with the base)
86x86x36.6mm (without the base | Outside the wall)
60.9×62.9×24.6mm (back base dimension)
60mm (bolt hole spacing)
Nt Wt: 210g
Neutral (N): Required
